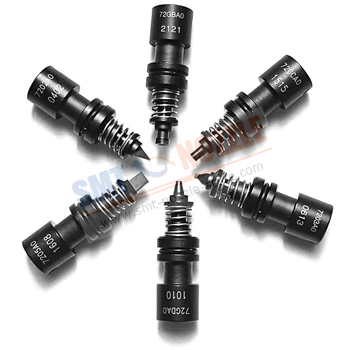

A Set of Yamaha Pick-and-place Nozzle 7202A, 7203A, 7204A, 7205A, 7206A, 7207A, 7208A, 500A, 501A, 502A, 503A, 504A, 506A, 507A, 510A, 511A, 512A, 513A, 514A, 515A, 517A, 518A, 64A, 65A, 66A, 604A, 605A, 606A are suitable for your Yamaha High-density Modular Surface Mounter YSM40R / YSM40:
The pick-and-place nozzle adapts to the SMT model and the nozzle size:
Pick-and-place nozzle 500A applies to 0402 Chip - Yamaha KLF-M87A0-A0, 0.25 mm x 0.35 mm
Pick-and-place nozzle 501A applies to 0603 to 1005 Chip - Yamaha KLF-M7710-A0, 0.80 mm x 0.70 mm
Pick-and-place nozzle 502A applies to 1608 to 3216 Chip - Yamaha KLF-M7720-A0/KLF-M7720-A1, 1.0 mm x 1.7 mm
Pick-and-place nozzle 503A applies to SOP - Yamaha KLF-M8740-A0, ø4.0 mm/3.0mm x 2.0 mm
Pick-and-place nozzle 504A applies to QFP, PLCC - Yamaha KLF-M8750-A0, ø8.0 mm
Pick-and-place nozzle 506A applies to Cylindrical component - Yamaha KLF-M8770-A0, 3.0 mm x 2.0 mm
Pick-and-place nozzle 507A applies to 32 x 32 mm or larger components - Yamaha KLF-M8780-A0, ø9.0 mm
Pick-and-place nozzle 510A applies to 0402 Chip - Yamaha KLF-M87A0-A0, 0.25 mm x 0.35 mm
Pick-and-place nozzle 511A applies to 0603 Chip - Yamaha KLF-M8710-A0 / KLF-M8710-A1, 0.35 mm x 0.75 mm
Pick-and-place nozzle 512A applies to 1005 to 1608 Chip - Yamaha KLF-M8720-A0/KLF-M8720-A1, 1.2 mm x 0.45 mm
Pick-and-place nozzle 513A applies to 2012 to 3225 Chip - Yamaha KLF-M8730-A1, 1.3 mm x 2.0 mm
Pick-and-place nozzle 514A applies to SOP - Yamaha KLF-M8740-A0, ø4.0 mm/3.0mm x 2.0 mm
Pick-and-place nozzle 515A applies to QFP, PLCC - Yamaha KLF-M8750-A0, ø8.0 mm
Pick-and-place nozzle 517A applies to Cylindrical component - Yamaha KLF-M8770-A0, 3.0 mm x 2.0 mm
Pick-and-place nozzle 518A applies to 32 x 32 mm or larger components - Yamaha KLF-M8780-A0, ø9.0 mm
Pick-and-place nozzle 64A applies to IC components - Yamaha KV7-M7740-A0X, ø10.0 mm
Pick-and-place nozzle 65A applies to IC components - Yamaha KV7-M7750-A0X, ø15.0 mm
Pick-and-place nozzle 66A - Yamaha KV7-M7760-00X
Pick-and-place nozzle 604A applies to IC components - Yamaha KV7-M7740-A0X, ø10.0 mm
Pick-and-place nozzle 605A applies to IC components - Yamaha KV7-M7750-A0X, ø15.0 mm
Pick-and-place nozzle 606A - Yamaha KV7-M7760-00
Pick-and-place nozzle 7202A applies to 0402 Chip - Yamaha KMB-M7720-A0, 0.25 mm x 0.35 mm
Pick-and-place nozzle 7203A applies to 0603 Chip - Yamaha KMB-M7730-A0, 0.3 mm x 0.7 mm
Pick-and-place nozzle 7204A applies to 1005 Chip - Yamaha KMB-M7740-A0, 0.5 mm x 1.5 mm
Pick-and-place nozzle 7205A applies to 1608 Chip - Yamaha KMB-M7750-A0, 0.9 mm x 1.7 mm
Pick-and-place nozzle 7206A applies to 2012 Chip - Yamaha KMB-M7760-A0, 1.3 mm x 2.0 mm
Pick-and-place nozzle 7207A applies to 3216 to 3225 Chip - Yamaha KMB-M7770-A0, 2.0 mm x 3.2 mm
Pick-and-place nozzle 7208A applies to SOP - Yamaha KMB-M7780-A1, ø4.0 mm/3.0 mm x 2.0 mm
