A Set of Yamaha Pick-and-place Nozzle 500A, 501A, 502A, 503A, 504A, 506A, 507A, 510A, 511A, 512A, 513A, 514A, 515A, 517A, 518A, 64A, 65A, 66A, 604A, 605A, 606A are suitable for your Yamaha High-density Modular Surface Mounter YSM40, YSM40R:
The pick-and-place nozzle adapts to the SMT model and the nozzle size:

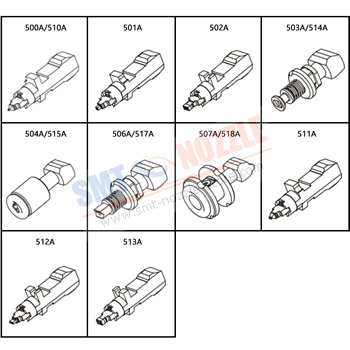

Pick-and-place nozzle 500A applies to 0402 Chip - Yamaha KLF-M87A0-A0, 0.25 mm x 0.35 mm
Pick-and-place nozzle 501A applies to 0603 to 1005 Chip - Yamaha KLF-M7710-A0, 0.80 mm x 0.70 mm
Pick-and-place nozzle 502A applies to 1608 to 3216 Chip - Yamaha KLF-M7720-A0/KLF-M7720-A1, 1.0 mm x 1.7 mm
Pick-and-place nozzle 503A applies to SOP - Yamaha KLF-M8740-A0, ø4.0 mm/3.0mm x 2.0 mm
Pick-and-place nozzle 504A applies to QFP, PLCC - Yamaha KLF-M8750-A0, ø8.0 mm
Pick-and-place nozzle 506A applies to Cylindrical component - Yamaha KLF-M8770-A0, 3.0 mm x 2.0 mm
Pick-and-place nozzle 507A applies to 32 x 32 mm or larger components - Yamaha KLF-M8780-A0, ø9.0 mm
Pick-and-place nozzle 510A applies to 0402 Chip - Yamaha KLF-M87A0-A0, 0.25 mm x 0.35 mm
Pick-and-place nozzle 511A applies to 0603 Chip - Yamaha KLF-M8710-A0 / KLF-M8710-A1, 0.35 mm x 0.75 mm
Pick-and-place nozzle 512A applies to 1005 to 1608 Chip - Yamaha KLF-M8720-A0/KLF-M8720-A1, 1.2 mm x 0.45 mm
Pick-and-place nozzle 513A applies to 2012 to 3225 Chip - Yamaha KLF-M8730-A1, 1.3 mm x 2.0 mm
Pick-and-place nozzle 514A applies to SOP - Yamaha KLF-M8740-A0, ø4.0 mm/3.0mm x 2.0 mm
Pick-and-place nozzle 515A applies to QFP, PLCC - Yamaha KLF-M8750-A0, ø8.0 mm
Pick-and-place nozzle 517A applies to Cylindrical component - Yamaha KLF-M8770-A0, 3.0 mm x 2.0 mm
Pick-and-place nozzle 518A applies to 32 x 32 mm or larger components - Yamaha KLF-M8780-A0, ø9.0 mm

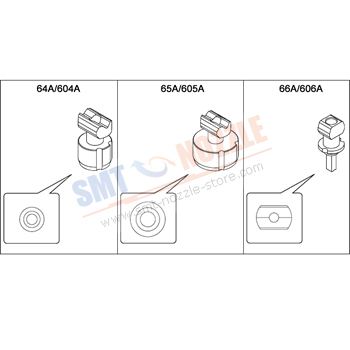

Pick-and-place nozzle 64A applies to IC components - Yamaha KV7-M7740-A0X, ø10.0 mm
Pick-and-place nozzle 65A applies to IC components - Yamaha KV7-M7750-A0X, ø15.0 mm
Pick-and-place nozzle 66A - Yamaha KV7-M7760-00X
Pick-and-place nozzle 604A applies to IC components - Yamaha KV7-M7740-A0X, ø10.0 mm
Pick-and-place nozzle 605A applies to IC components - Yamaha KV7-M7750-A0X, ø15.0 mm
Pick-and-place nozzle 606A - Yamaha KV7-M7760-00
