High Quality Replacements for Yamaha Premium High-efficiency Modular Mounter YRM20 Nozzles 8103A, 8104A, 8105A, 8106A, 8107A, 8108A, 8109A, 8110R, 8004H, 8006H, 8011H, 8012H

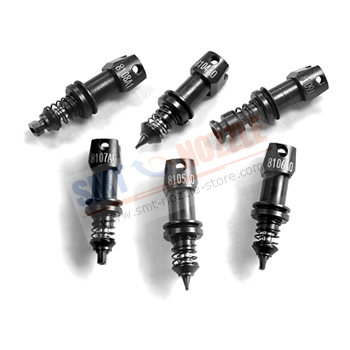

High Quality Replacements for Yamaha Pick-and-place Nozzles 8103A, 8104A, 8105A, 8106A, 8107A, 8108A, 8109A, 8110R, 8004H, 8006H, 8011H, 8012H are suitable for your Yamaha Premium High-efficiency Modular Mounter YRM20
The pick-and-place nozzle adapts to the SMT model and the nozzle size:
High Quality Replacements for Pick-and-place nozzle 8103A applies to 0402 Chip - Yamaha KMX-M7713-A0, 0.40 mm x 0.20 mm
High Quality Replacements for Pick-and-place nozzle 8104A applies to 0603 Chip - Yamaha KMX-M7714-A0, 0.34 mm x 0.6 mm
High Quality Replacements for Pick-and-place nozzle 8105A applies to 1005 Chip - Yamaha KMX-M7715-A0, 0.5 mm x 1.0 mm
High Quality Replacements for Pick-and-place nozzle 8106A applies to 1608 Chip - Yamaha KMX-M7716-A0, 0.8 mm x 1.6 mm
High Quality Replacements for Pick-and-place nozzle 8107A applies to 2012 Chip - Yamaha KMX-M7717-A0, 1.25 mm x 2.0 mm
High Quality Replacements for Pick-and-place nozzle 8108A applies to 3216 to 3225 Chip - Yamaha KMX-M7718-A0, 2.0 mm x 3.2 mm
High Quality Replacements for Pick-and-place nozzle 8109A applies to 3.2 × 3.2mm to 72 × 7.2mm components - Yamaha KMX-M7719-A0, ø4.0 mm
High Quality Replacements for Pick-and-place nozzle 8110R applies to 7.2 × 7.2 mm to 12 × 12 mm Chip - Yamaha KMX-M7720-A0
High Quality Replacements for Pick-and-place nozzle 8004H applies to 0603 to 1005 Chip - Yamaha KMX-M7723-A0
High Quality Replacements for Pick-and-place nozzle 8006H applies to 1608 to 2012 Chip - Yamaha KMX-M7724-A0
High Quality Replacements for Pick-and-place nozzle 8011H applies to 12 × 12 mm to 32 × 32 mm Chip - Yamaha KMX-M7725-A0
High Quality Replacements for Pick-and-place nozzle 8012H applies to 32 × 32 mm to 45 × 45 mm Chip - Yamaha KMX-M7726-A0
