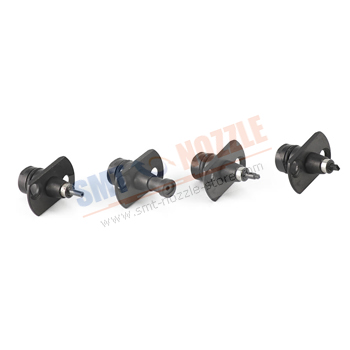

A Set of Yamaha Series Pick-and-place Nozzle 201A, 202A, 203A, 204A, 206A, 209A, 71F, 72F, 73F, 79F are suitable for your Yamaha Modular High-speed Mounter YG200L:
The pick-and-place nozzle adapts to the SMT model and the nozzle size:
Pick-and-place nozzle 201A applies to 1005 components - KGT-M7710-A0X, 0.8 mm x 0.7 mm (X)
Pick-and-place nozzle 202A applies to 1608 components - KGT-M7720-A0X, 1.0 mm x 1.7 mm (X)
Pick-and-place nozzle 203A applies to IC - KGT-M7730-A0X, KGT-M7730-A1X, ø4.0 mm / 3.0mm x 2.0 mm
Pick-and-place nozzle 206A applies to MELF - KGT-M7760-A0X, 3.0mm x 2.0 mm
Pick-and-place nozzle 209A applies to 1608 - KGT-M7790-A0X, 3.0mm x 2.0 mm
Pick-and-place nozzle 71F applies to 1005 components - KV8-M71N1-A0X, 0.6 mm x 0.8 mm (X)
Pick-and-place nozzle 72F applies to 1005 components - KV8-M71N2-A0X, 1.0 mm x 1.7 mm (X)
Pick-and-place nozzle 73F applies to IC components - KV8-M71N3-A0X, KV8-M71N3-A06, ø4.0 mm / 3.0mm x 2.0 mm
Pick-and-place nozzle 79F applies to 1608 components - KV8-M71N9-A0X, KV8-M71N9-A1X, ø1.2 mm / ø0.7 mm

Yamaha YG200L SMT nozzle - The special nozzle is integrated, and grinded by imported precision equipment to ensure its precision. The main body is made of imported tungsten steel material, which has good wear resistance. The Yamaha YG200L SMT nozzle core is made of diamond and ceramic, which is durable and not whitish.
