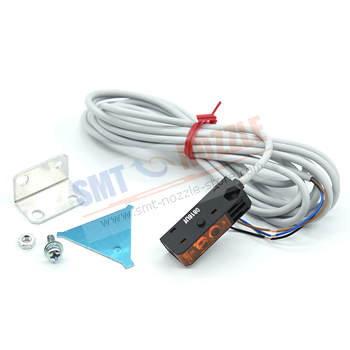

Juki Stop Sensor Cable ASM - Limited diffuse scan Infrared LED Photoelectric Sensors HPJ-A21 0816Uf for Juki Mounter KE-2050/KE-2060/KE-2070/KE-2080/JX-300LED

- Scanning method: Limited diffuse scan
- Scanning distance: 3 ± 0.5cm
- Supply voltage: 10.8 to 26.4Vdc
- Current consumption: 20mA max.
- Output mode: NPN open collector
- Operation mode: Light ON
- Control output: Output switching circuit: 80mA max. (resistive load); Voltage drop: 1V max. (at 80mA switching circuit); Output dielectric strength: 26.4V
- Response time: 1ms max. for operation and recovery
- Sensitivity adjustment: 1-turn control
- Light emitter: Infrared LED
- Indicator lamps: Operation indicator (other than thru scan emitter): red (lit at output ON)
- Ambient light immunity: Incandescent lamp: 3,000lx max., Sunlight: 10,000lx max.
- Operating temperature range: –20 to +50˚C
- Storage temperature range: –40 to +70˚C
- Humidity range: 35 to 85%RH (condensation not allowed)
- Insulation resistance: 20 MΩ min (by 500 Vdc megger)
- Dielectric strength: Non-controlled sections: 1,000 Vac (50/60 Hz) for 1 minute; Controlled sections: 500 Vac (50/60 Hz) for 1 minute between case and electrically live metals
- Vibration resistance: 10 to 55, 1.5 mm peak-to-peak amplitude, 2 hrs in X, Y, and Z directions
- Shock resistance: 500 m/s 2 3 times in X, Y and Z directions
- Protection: IP40 (IEC standard)
- Wiring method: Pre-leaded
- Circuit protection: Reverse connection protection circuit
