Home › DIY Pick and Place Head › DIY Pick and Place Head Module 2M

DIY Pick and Place Head Module 2M - Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder + R-axis Nema 11 Motor(28x28x34mm) + ABS Rotary Joint Connector + 4mm KSH Trachea Rotary Joint M5 + Sensor Wire + Spring type Bracket Kit + Motor Driver

DIY Pick and Place Head Module 2M Move Up and Down On Z-axis
  • Price: $187.50 / set
  • The Color of Juki Nozzles:

    The first nozzle is:

    Quantity:

  • Free Shipping ! 1 Year Warranty !

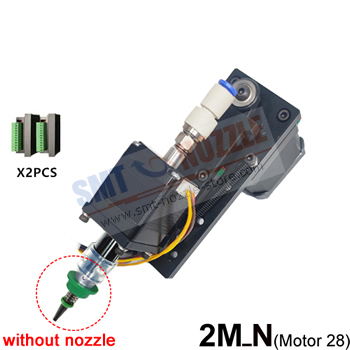

DIY Pick and Place Head Module 2M_N without Juki Nozzle - Z-axis Nema 17 Motor(42x42x40mm) + Nozzle Holder + R-axis Nema 11 Motor(28x28x34mm) + ABS Rotary Joint Connector + 4mm KSH Trachea Rotary Joint M5 + Sensor Wire + Spring type Bracket Kit + Motor Driver

DIY Pick and Place Head Module 2M_N without Juki Nozzle Move Up and Down On Z-axis
  • Price: $182.50 / set
  • Quantity:

  • Free Shipping ! 1 Year Warranty !
You can also buy DIY Pick and Place Head Module 1MDIY Pick and Place Head Module 1M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module 3MDIY Pick and Place Head Module 3M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module 4MDIY Pick and Place Head Module 4M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy Juki Nozzle HolderSMT Nozzle Holders used for Juki Pick-and-place Machine
Product Features

DIY Pick and Place Head Assembly

DIY Pick and Place Head Module 2M components, including: Z-axis Nema 17 Stepper Motor(42x42x40mm), Juki Nozzle 500/501/502/503/504/505/506/507/508(Green / Black), Nozzle Holder, R-axis Nema 11 Hollow Shaft Stepper Motor(28x28x34mm), ABS Rotary Joint Connector, Spring type Bracket Kit, Motor Wire, Sensor Wire, Motor Driver.

- Each set of placement head is equipped with a conventional Nozzle (choose one of 500-508(Green / Black))
- Max moving range of Z-axis: 20mm
- R-axis Rotary: 800/min
- The Nozzle can be replaced quickly and easily.
- Best Concentricity
- The Nozzle can be controlled to rotate freely 360°.
